RAM® Locking Power & Data Cradle for Samsung Tab Active2 (RAM-HOL-SAM7PCL2-HARU)

  • 9,540.00 PHP Ex. Tax: 9,540.00 PHP


This RAM® EZ-Roll’r™ powered cradle for the Samsung Tab Active2 supports simultaneous data syncing and has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through seven GDS® pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, the RAM-HOL-SAM7PCL2-HARU features a patent pending dial combination lock. Unique features include access to the NFC reader while in the cradle for scanning NFC tags as well as the stylus.

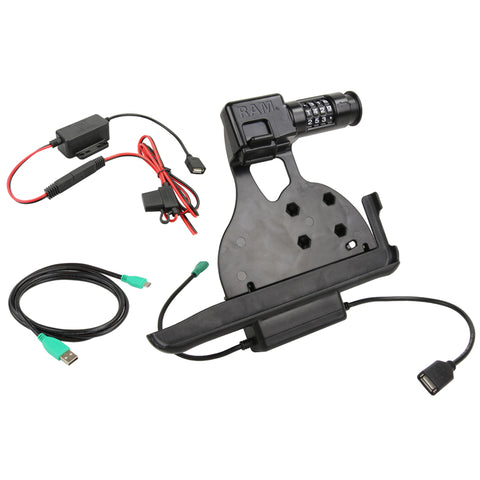

Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the GDS® modular hardwire charger, GDS® genuine USB 2.0 straight cable, 200mm cable with mUSB female connector for power, and 200mm cable with USB Type-A female connector to attach any USB 1.1 peripherals, 500mA max.

Cradle Features
1. Dial combination locking mechanism for theft deterrence
2. Access for camera use while docked
3. Low cost
4. One-handed operation
5. No need to lock the latch for shock and vibration applications
6. Works with the protective sleeve attached
7. NFC reader accessible while in dock
8. Access to stylus while in dock
9. Easily rotate for use in portrait or landscape mode

Specs & Features
    • Charger Specs:
      - Input Range: 8V - 40V DC
      - Output Voltage: 5VDC
      - Output Current: 2.5A max
      - Output Connector Type: 90° DC plug
      - Input Cable Length: 1.2 Meters overall length including 2 Pole Flat Marine Connector
      - Output Cable Length: 1.2 Meters (with included 1M Type-A Male to 5.5mm OD/2.5mm ID 90° DC cable)
      - Operating Temperature Range: -10°C to +70°C
      - Storage Temperature Range: -40°C to +70°C
      - Overvoltage/Load Dump Compliance: Meets SAE J-1113
      - Integrated Short Circuit Protection
      - FCC, Industry Canada, CE, WEEE, e-Mark and RoHS Compliant
      - USB 2.0 BC 1.2 DCP Support
    • Material: High Strength Composite
    • Note: Type-A port does not support USB peripheral charging (USB 2.0 BC1.2)
    • Warranty Status: 3 year warranty
