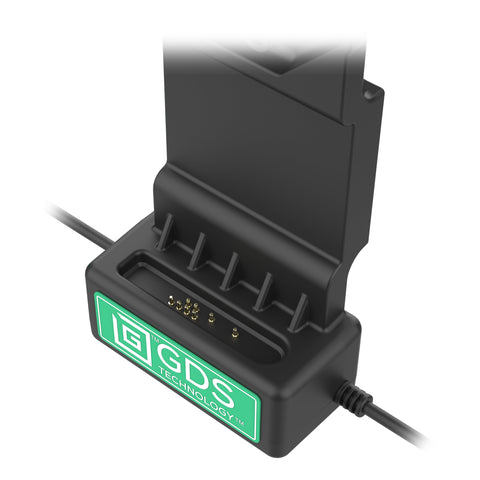

GDS® Uni-Conn™ Power + Single USB-A Dock (RAM-GDS-DOCK-U1CDU)

GDS® Uni-Conn™ Power + Single USB-A Dock (RAM-GDS-DOCK-U1CDU)

  • 10,720.00 PHP

RAM-GDS-DOCK-U1CDU

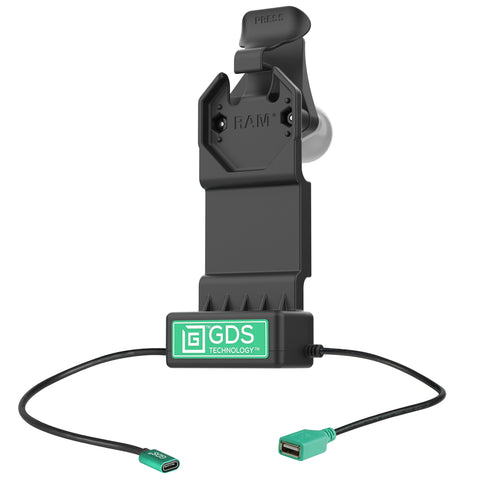

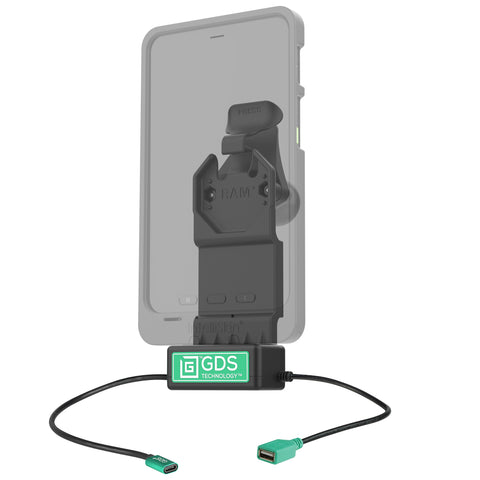

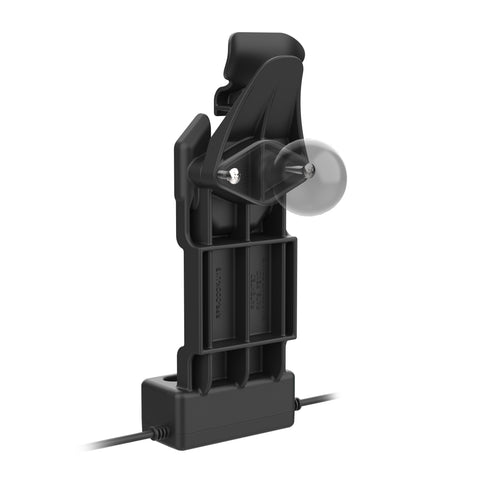

The GDS Uni-Conn Dock + Single USB-A (RAM-GDS-DOCK-U1CDU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate up to one peripheral device into your solution with the USB-A female connector. It features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS Uni-Conn adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS Uni-conn dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected. One Dock to Connect Them All.


Features
  • Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral

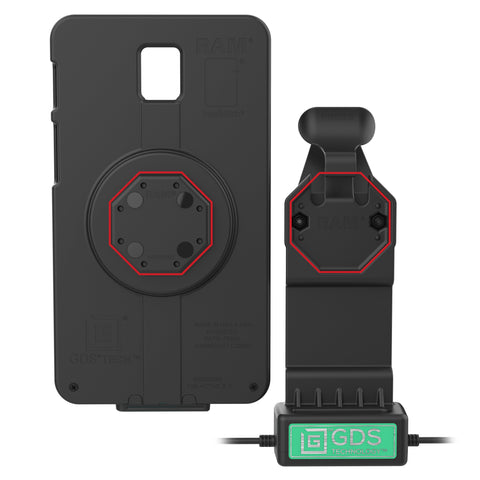

  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
  • Power delivered via USB-C connector; connect a single input device via USB-A connector
  • RAM® Mounts Compatible™
  • Backed by a 3-year warranty
  • Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral
  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
  • Power delivered via USB-C connector; connect a single input device via USB-A connector
  • RAM® Mounts Compatible™
  • Backed by a 3-year warranty
Tech Specs
  • Product Weight: 0.48 lb

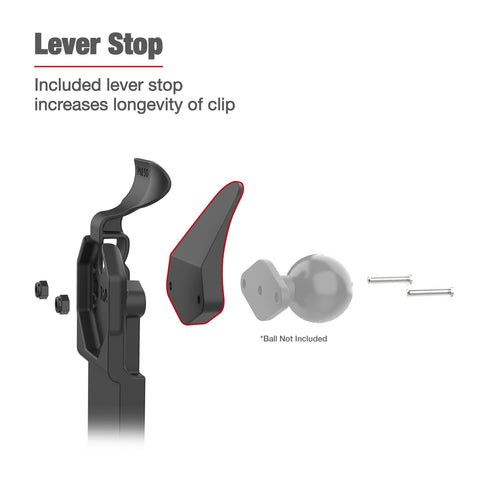

  • Hardware Included: (1) Lever Stop | (2) #8-32 x 1" Machine Screws | (2) #8-32 Nylock Nuts | (1) Cable Clamp Kit
  • Product Dimensions: Overall Width: 3.16" | Overall Height: 8.44" | Overall Depth: 3.03"
  • Hole Pattern: 2-Hole AMPS: 1.912"
  • Materials: High strength composite
  • Packaging Type: Poly Bag
  • Output Voltage: 5V - 12V @ 3A
  • Power Output: 15W
  • Input Connector: USB Type-C | USB Type A for 1 Peripheral
  • Input Cable Length: 215mm
  • Output Cable Length: 215mm
  • Peripheral Output: 500mAh
Package Content
  • 1 x GDS® Uni-Conn™ Power + Single USB-A Dock (RAM-GDS-DOCK-U1CDU)
