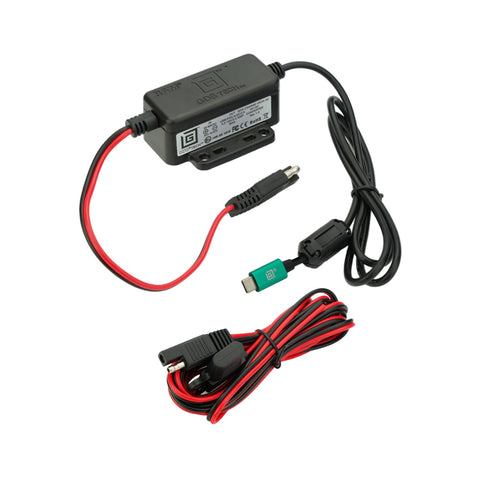

GDS® Modular 30-64V Power Delivery Hardwire Charger with Male USB Type-C (RAM-GDS-CHARGE-V3CH-2U)
RAM-GDS-CHARGE-V3CH-2U
The GDS® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 15V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery.
- Hardwire charger includes USB Type-C male connection with input of 30-64VDC and output of 5-15VDC Supports Power Delivery
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
Features & Specs:
- Input Voltage: 30-64VDC
- Output Voltage: 5-15VDC
- Output Current: 3A max
- Input Connector: Bare Wire
- Input Cable Length: 2.5 Meters
- Output Connector: USB Type-C Male
- Output Cable Length: 1 Meter
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
- Compliance:
- Over Voltage Protection
- Short Circuit Protection
- Reverse Polarity Protection
- RoHS Compliance
- WEEE Compliance
- SAE J-1113-5 Load Dump (Transient Voltage)
- Moisture Resistant
- Certifications:
- CE Certification
- RCM Certification
- FCC Certification
- UL 62368-1 Certification
- Warranty: 3 year warranty
- Weight: 0.47 lb
Package Content:
- 1 x GDS® Modular 30-64V Power Delivery Hardwire Charger with Male USB Type-C (RAM-GDS-CHARGE-V3CH-2U))
